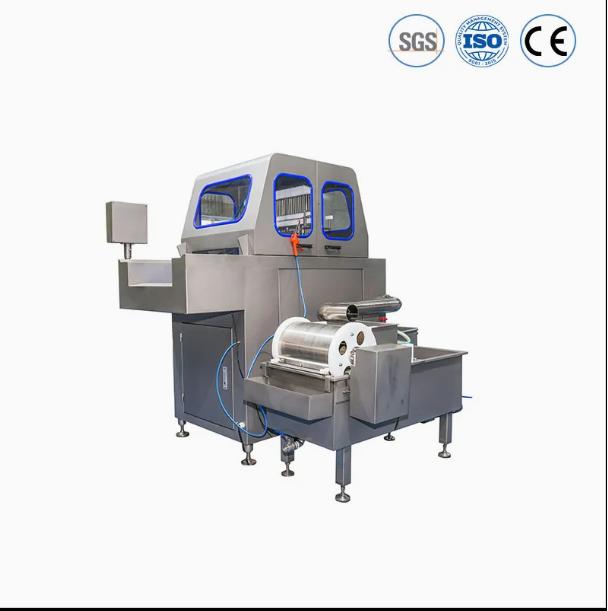

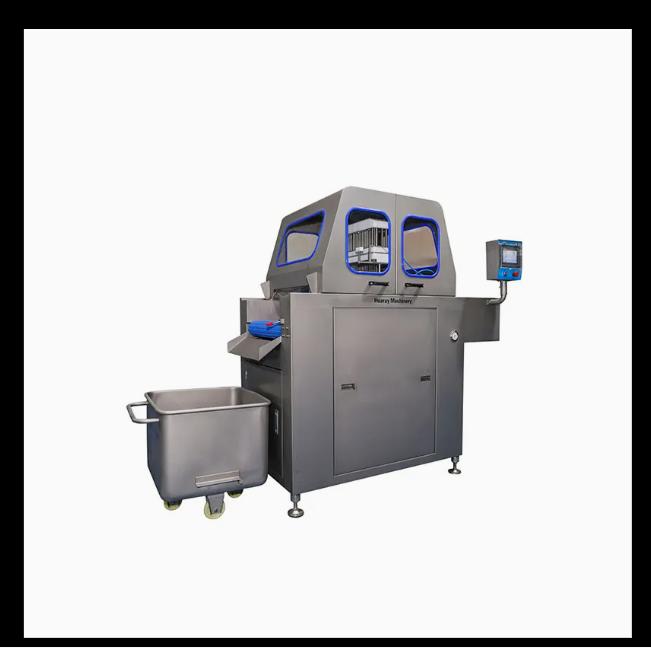

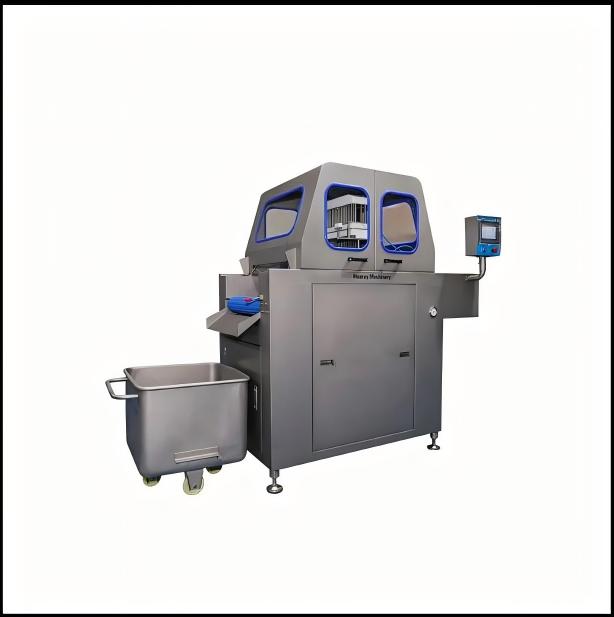

Industrial Brine Injector Machine
Efficient automation for large-scale Meat processing
Brine Injector Machine are commonly used in meat such as pork , beef, chicken processing. They are mainly used to inject brine or emulsion into meat to tenderize the meat, improve the yield rate, and achieve other purposes. The following is an introduction to the product knowledge of brine injectors:
Working Principle
The working principle of a brine injector machine is similar to that of a syringe, and it realizes batch processing through a multi-needle array. The pre-prepared brine or seasoning liquid is uniformly injected into the interior of meat blocks through food-grade 304 stainless steel needles under the drive of the equipment's pressure.
Main Structure
The core components of a brine injector consist of an injection module, a transmission device, and a circulation system. The injection module includes needles, an injection pump, etc., and is responsible for injecting brine into meat blocks; the transmission device is used to convey meat blocks, and the injection frequency can be adjusted through a variable-frequency mesh belt; the circulation system includes a storage tank, an agitator, etc., which are used to store and stir the brine to prevent material precipitation.
Product Features:
Uniform Injection
The stepping speed and stroke can be adjusted to ensure uniform injection distribution without dead zones. For example, Huaray Brine Injector Model ZN-140 can inject meat blocks with a thickness of 2-15 cm and a size of 40-50 cm, with a one-time injection rate of not less than 80%.
Protection Device
It is equipped with an automatic protection device. When the injection needle hits a hard object, the injection needle will lift up immediately without being damaged, while the injection needles that do not hit hard objects will still move downward to complete the injection.
Easy to Clean
Components such as the chain row of the equipment are detachable, which is convenient for cleaning and maintenance, and meets food hygiene standards.
Adjustable Pressure and Speed
Parameters such as injection pressure, stepping speed, and stepping distance can be adjusted according to different process requirements to achieve the ideal injection effect.
Common Types
According to different power sources, brine injectors can be divided into mechanical brine injectors and pneumatic brine injectors. Some brine injectors are also equipped with a variable-frequency function according to process requirements, which makes the application of brine injectors in the field of meat product processing more perfect.
Technical Parameters
The technical parameters of brine injectors vary with different models. Taking Huaray Brine Injectors as an example, the production capacity of Model HR-ZN140 is 0.5-1 T/h, the power is 5.3 KW, the injection pressure is 0.4-1.1 Mpa, the working stroke is 120 mm, the injection speed is 16/24 times per minute, the number of needles is 72, and the volume of the mixing tank is 110 L. For Model HR-ZN180, the production capacity is 3-5 T/h, the power is 13.5 KW, the number of needles is 180, and the volume of the mixing tank is 300 L.
Below is Brinn Injector Mahicne Specificaiton :
Model NO. : HR-ZN140
Power Source: Electric
Process: Inject Some Condiment
Automatic Grade: Automatic
Type: Saline Injection Machine
Voltage: 380V
Customized: Customized
Commodity: Saline Injector
Total Power: 14kw
Air Pressure: 0.4-0.6MPa
Injection Speed: 15-60 Times/Min
Feed Pitch: 15-90 mm
Injecion Needle: 140 Pieces
Capacity: 800-1200kg/H
Weight: 900kg
Dimension: 1850×1750×2000mm
Speed: Stepless Adjustment
Transport Package: Wooden Box
Specification: 1500*1100*1700mm
Origin: Hebei Province
HS Code: 8438500000
Production Capacity: 15 Sets Per Month
Packaging & Delivery
Package Size
190.00cm 190.00cm 210.00cm
Package Gross Weight
900.000kg
